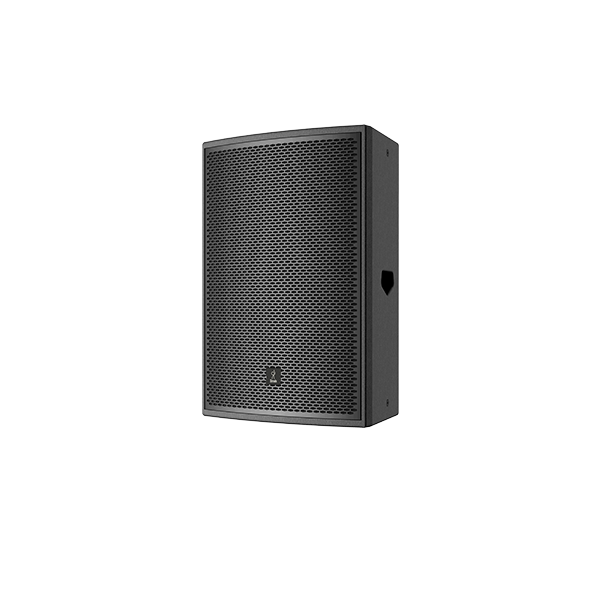

SS-15 Two-way full range speaker

  • 450W RMS(AES) power handling
  • 98dB continuous SPL output
  • 55-19000Hz usable frequency range
  • Porous multilayer plywood box
  • Black stonetex paint
  • New circuit design, adjustment and calibration of professional electro-acoustic equipment

SS-15 is a powerful two-way passive speaker. The speaker is characterized by the outstanding singing voice effect of the mid-frequency vocal voice, the low frequency is clean and soft, and full, and the high frequency is smooth and delicate. It can provide cost-effective speaker system solutions for most applications, showing accurate sound coverage and high Language clarity.

This full-range speaker selects high-quality power drivers, specially designed for optimizing the sound reinforcement system, with delicate and realistic reduction capabilities, and features low distortion, large dynamics, and high sensitivity. The selected paper cone has good damping, rigidity, strong elasticity, and fatigue resistance. Convenient and quick hoisting system. It is suitable for conference venues, stage performances, side field sound fill systems, and various fixed installation places.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)470x691x441mm
Shipping Carton Size (W x H x D)546x780x523mm
Weight33.6kg net/36.8kg gross

Technical Specification

TypeTwo-way full-range speaker
Power Handling (AES)450W RMS
Program840W
Peak1680W
Nominal Impedance
Average Sensitivity(1w/1m)96dB
Maximum SPL/1m129dB continuous
Program132dB
Peak135dB
Frequency Response55Hz-19KHz(±3dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier600W/800W
LF Driver1×15″ driver
HF Driver1×3″ compression driver
