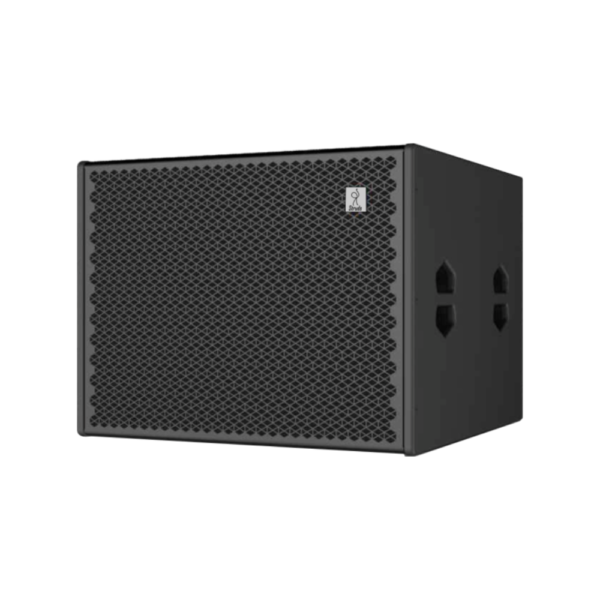

DS-18W Single 18-inch passive subwoofer

  • 800W RMS(AES) power handling
  • 100mm highly transient lower frequency driver
  • Band-pass combination cabinet design
  • Safe and reliable audio interface.

DS-18W is a subwoofer that can provide a frequency range of 38-250Hz. Due to its phase response, it is designed to be used with various full-range speakers, which can expand the low-frequency response of the system.

DS-18W subwoofer through accurate path calculation, built-in 18-inch-high performance speaker, to achieve surging and elastic low-frequency effect. There are multiple operation modes in the DSP8 processor, which provide perfect results in any environment. It does not have the airflow noise of ordinary ultra-low speakers in large dynamics, adopts the design of phase inversion and bandpass cabinet to increase low-frequency output, and greatly reduces the group delay of the low-frequency band (GROUP DELAY), which can increase the speed of low frequency. At the same time, it reduces the non-linear distortion of the low frequency, so it can fully realize the speed, strength, and thickness of the low frequency.

The box is made of birch plywood, and the surface is coated with wear-resistant and anti-collision water-based paint. The ergonomic handle design is convenient for carrying. Equipped with a sturdy perforated iron mesh and sound transmission black mesh cotton inside to ensure minimum acoustic interference and maximum protection of the speaker driver.

Physical Data

Connectors2 x Speakon NL4
Connection MethodSpeakon; +1, -1
MaterialPlywood
FinishMatt black polyurea paint
Cabinet Size(W×H×D)700x540x700mm
Shipping Carton Size (W xH x D)800x636x796mm
Weight48kg net/52kg gross

Technical Specification

TypeSingle 18-inch passive subwoofer
Power Handling (AES)800W RMS
Program1600W
Peak3200W
Nominal Impedance
 Average Sensitivity(1w/1m)100dB
Maximum SPL/1m125dB continuous
Program128dB
Peak131dB
Frequency Response38Hz-250Hz(±3dB)
Nominal Directivity(-6dB)Omnidirectional
Recommended Amplifier1000W 8Ω
LF Driver1×18″ driver
