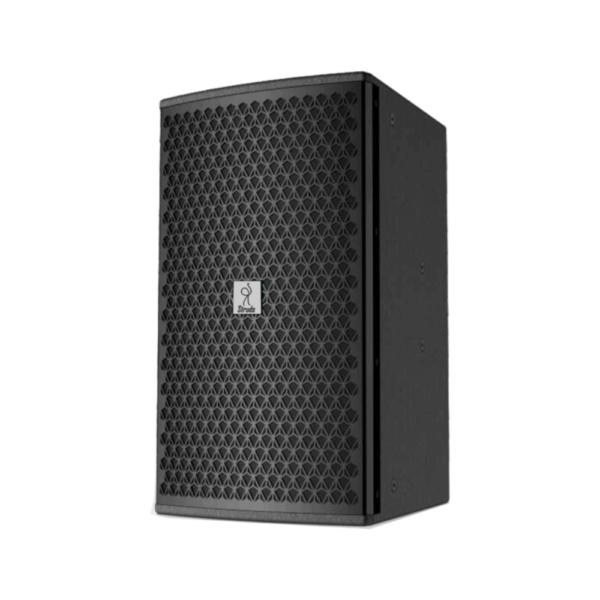

AS-12 Two-way full range speaker

  • 450W RMS(AES) power handling
  • 129dB continuous SPL output
  • 100°x70° low resonance horn
  • 55-19000Hz usable frequency range
  • New circuit design adjustment and calibration
  • of professional electro-acoustic equipment

AS-12 is a two-way passive speaker with a high-precision 44-core compression driver, which can bring smooth ultra-high frequency extension performance and extremely clear, translucent treble sound. The unique horn technology provides precise directivity, ensuring that different parts covered by the loudspeaker can be heard evenly.

The carefully designed frequency division network and 75-core low-frequency loudspeaker make the low-frequency dynamic and thick, which can meet the needs of professional sound reinforcement. The cabinet is made of high-density plywood, with black water-based paint and dark green flash silver piano paint for customers to choose from. The dark green flash silver piano paint adopts advanced spraying technology, which makes the surface resistant to breaking, bright, and fashionable AS-12 is suitable for fixed installation in different venues.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)385x650x420mm
Shipping Carton Size (W x H x D)483x710x501mm
Weight24.5kg net/27 gross

Technical Specification

TypeTwo-way full range speaker
Power Handling (AES)450W RMS
Program900W
Peak1800W
Nominal Impedance
Average Sensitivity(1w/1m)98dB
Maximum SPL/1m129dB continuous
Program132dB
Peak135dB
Frequency Response55Hz-19KHz (±3dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier600W
LF Driver1×10″ 65 core driver (imported voice coil)
HF Driver1×1.75″ fane driver
