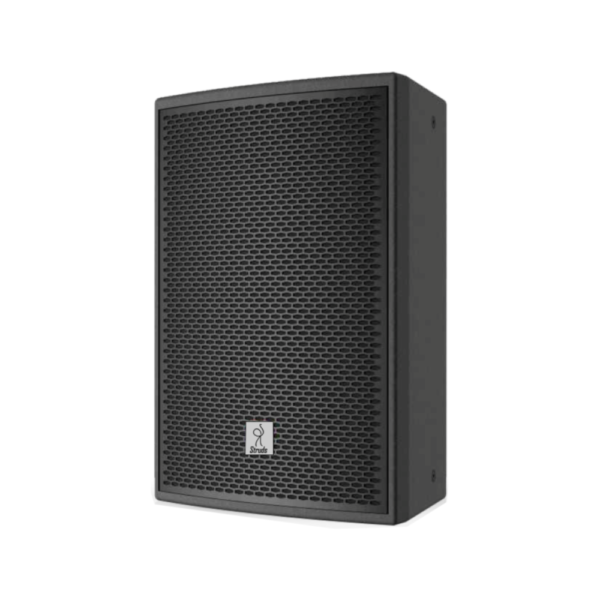

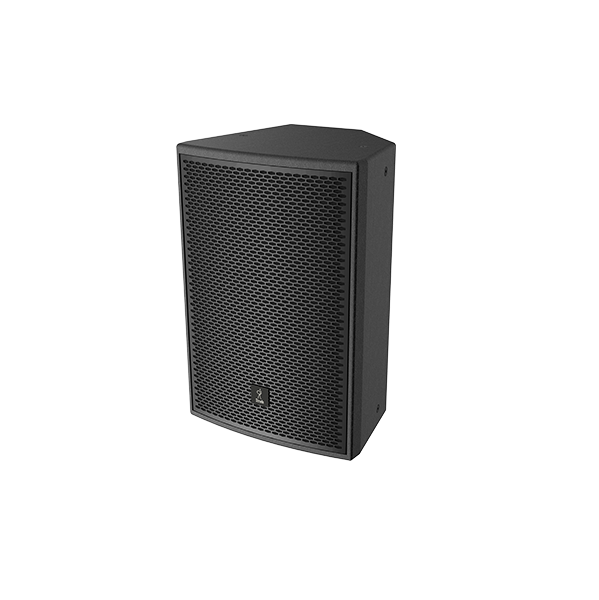

SS-12 Two-way full range speaker

  • 400W RMS power LF driver
  • Maximum SPL can be 128dB (Preset program)
  • 55-18000Hz usable frequency range
  • 100°x 70°low resonance horn
  • Black stonetex paint

SS-12 is a two-way passive speaker designed and developed for KTV. The speaker is characterized by excellent vocal effects. Singers of any level can easily play in the experience of this speaker, and the sound performance also has high-quality sound effects. Combined with the adjustment of cabinet melting amount, phase conduit, and sound-absorbing cotton, the loudspeaker also has good performance in low-frequency performance. It provides a frequency range of 55Hz-18kHz.

This full-range speaker is designed to optimize the sound reinforcement system. It has the delicate and lifelike restoring ability, and truly reproduces the sound deduction of various occasions. There is no burr in the middle and high frequency to avoid ear fatigue. Passion interpretation, dynamic low frequency interpretation, convenient hoisting system. It is suitable for conference rooms, stage performances, nightclub side field sound-filling systems and various fixed installation places.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)388x570x356mm
Shipping Carton Size (W x H x D)465x663x465mm
Weight21kg net/23.8kg gross

Technical Specification

TypeTwo-way full-range speaker
Power Handling (AES)400W RMS
Program800W
Peak1600W
Nominal Impedance
Average Sensitivity(1w/1m)96dB
Maximum SPL/1m128dB continuous
Program131dB
Peak134dB
Frequency Response55Hz-18KHz(±3dB) 50Hz-19.5Hz(-10dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier600W
LF Driver1×12″ 75 core driver
HF Driver1×1.75″ compression driver
