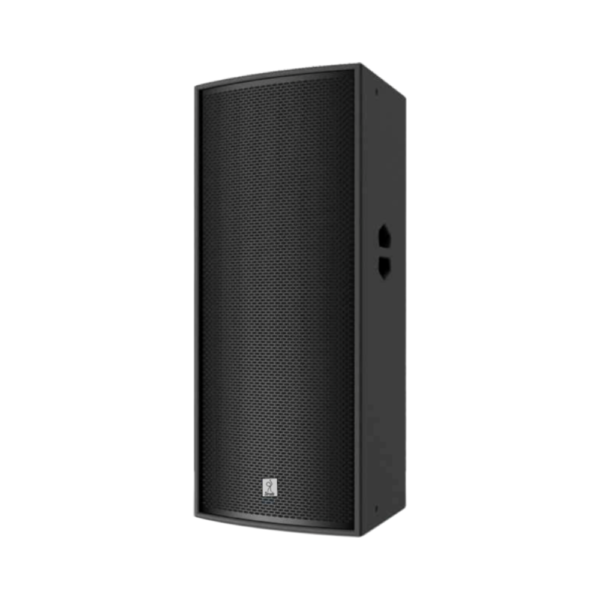

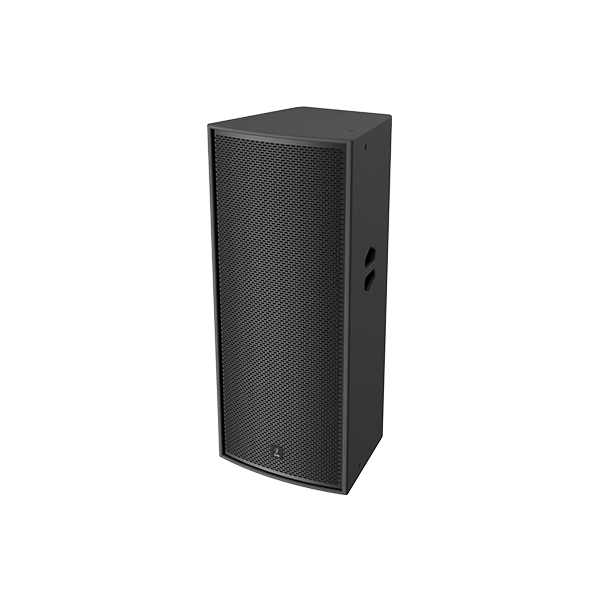

SS-215 Two-way full range speaker

  • 98dB continuous SPL output
  • 130dB continuous SPL output
  • 55-19000Hz usable frequency range
  • Porous multilayer plywood box
  • High sound resolution

SS-215 is a powerful two-way passive speaker. A speaker designed entirely for small and medium-sized performances. After the sound wave radiated from the loudspeaker is inverted through the pipe, the sound outlet radiates to the front and is superimposed with the sound wave radiated by the loudspeaker, thereby increasing sensitivity and less distortion.

It is composed of a 75-core (voice coil) ferrite compression tweeter and two 15-inch 75-core ferrite woofers. The low-frequency part uses two 300W 15-inch paper cone woofers, and the high-frequency part uses a horizontal 110°x vertical 70° horn, with a sensitivity of up to 100dB.

It uses a long-stroke voice coil and a unit with a high electro-acoustic conversion rate. The paper cone damping treatment makes the low-frequency clean and powerful, and the low-frequency strength and shock are strong. Dive deep at low frequencies and sensitivity has also been improved. It is suitable for places that need to provide strong flexibility, high sound pressure, high sound quality sound reinforcement, and solid low frequency, such as conference venues, stage performances, nightclub side sound fill systems, and various fixed installation places.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)472x1083x440mm
Shipping Carton Size (W x H x D)588x1205x552mm
Weight43.8kg net/47.5kg gross

Technical Specification

TypeTwo-way full-range speaker
Power Handling (AES)650W RMS
Program1300W
Peak2600W
Nominal Impedance
Average Sensitivity(1w/1m)100dB
Maximum SPL/1m130dB continuous
Program133dB
Peak136dB
Frequency Response55Hz-19KHz(±3dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier800W
LF Driver2×15″ driver
HF Driver1×3″ compression driver
