The Struds Professional Audio FR12 is a powerful 12-inch full-range passive loudspeaker designed for professional sound reinforcement in both portable and fixed installations. Delivering 400W RMS and 1600W peak power, with a maximum SPL of 132 dB, the FR12 offers exceptional output, crystal-clear vocals, and deep, punchy bass. Its wide 65 Hz – 19 kHz frequency response ensures accurate and balanced sound reproduction for live performances, houses of worship, auditoriums, conference venues, and event spaces. Built with a rugged enclosure and high-efficiency components, the FR12 combines reliability, versatility, and outstanding acoustic performance for demanding professional applications.

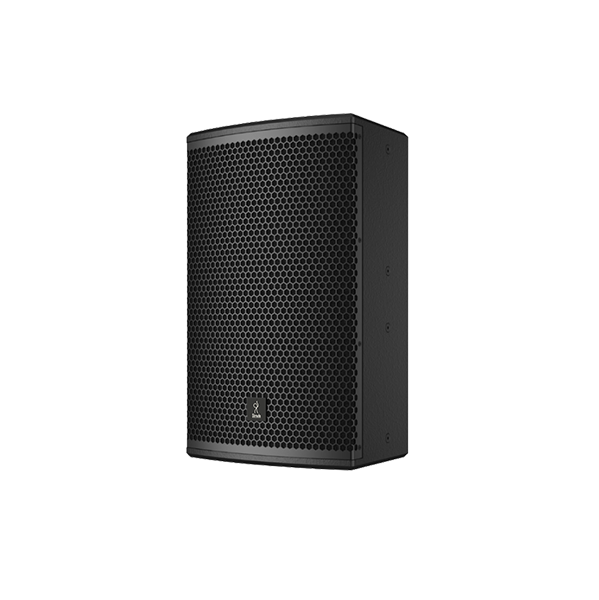

FR-12 Passive Two-Way Full-range loudspeaker
- Rotatable Constant Directivity horn tweeter
- 1.75″Voice Coil Non Metallic diaphragm Ferrite HF Driver
- 12″ Woofer with strong Rigidity paper cone
- two-way speaker with phase angle shifted to 180
PHYSICAL DATA
| Connectors | 2 x Speakon NL4 |
| Connection way | Speakon; +1, -1 |
| Material | Birch Plywood |
| Finish | Black stonetex paint |
| Cabinet Size(W×H×D) | 356x596x385mm |
| Shipping Carton Size (W x H x D) | 491x663x465mm |
| Weight | 23kg net/25kg gross |
TECHNICAL SPECIFICATION
| Type | Two-way full range speaker |
| Power Handling (AES) | 400W RMS |
| Program | 800W |
| Peak | 1600W |
| Nominal Impedance | 8Ω |
| Average Sensitivity(1w/1m) | 96dB |
| Maximum SPL/1m | 124dB continuous |
| Program | 127dB |
| Peak | 130dB |
| Frequency Response | 65Hz-19KHz (±3) |
| Nominal Directivity(-6dB) | 80°(H) x60°(V) constant directivity |
| Recommended Amplifier | 600W/800W |
| LF Driver | 1×12″ driver |
| HF Driver | 1×1.75″ compression driver |
