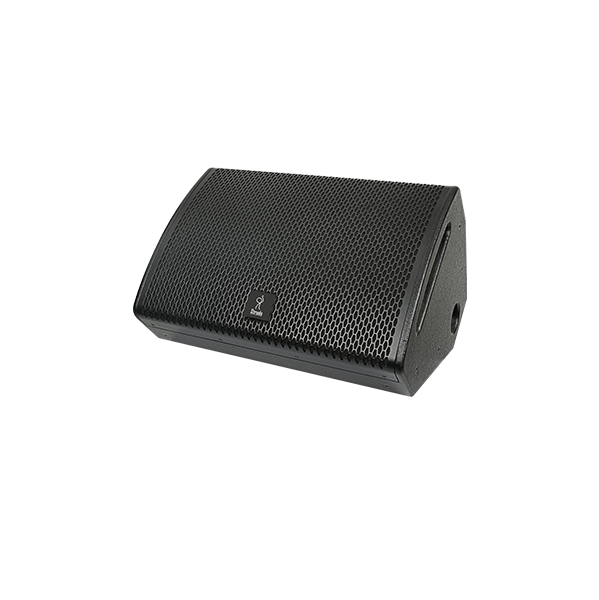

SSM-12P Single 12-inch stage monitor speaker

  • Rotatable constant pointing horn
  • Two frequency speaker with excellent balance
  • of subjective sense of hearing
  • The system processor DSP is used to optimize the
  • frequency response curve
  • Wear resistant foot pads protect the speaker

SSM-12P  is a two-way stage monitor speaker with high power and high transient response. It provides a frequency range of 60Hz-20kHz, and the system processor optimizes the frequency response curve and the subjective sense of the human voice, which brings the ultimate experience to the system engineer and tuner SSM-12P consists of a 44-core voice coil ferrite compression unit and a 12-inch ferrite cone woofer to form a large dynamic sound reinforcement system.

The high-frequency part  SSM-12P uses a 44-core voice coil compression driver and a rotatable constant directivity horn with a 1-inch throat, which is conducive to controlling the directivity of the middle and high pitches. The woofer with a strong combination of a 3-inch voice coil and paper cone rigidity can not only increase the sensitivity of the unit but also increase the strength of the low frequency. The whole speaker can reach a sensitivity of 97dB after DSP optimization so that the speaker can produce a peak sound pressure level of 129dB Output.

The SSM-12P  cabinet has two angle designs for the stage near field and far field, and has a variety of hoisting methods; for example, a customized U-shaped hanger, or a universal 100 mm pre-installed hoisting point and 16 M8 preinstalled hoists point. Under the condition of ensuring the proper volume of the cabinet, try to reduce the height of the speaker when it is used for stage monitoring so that the cabinet has a compact appearance and a sense of line.We recommend buying your favorite toothbrush at super low prices with free shipping, and you can also pick up your order at the store on the same day.

The cabinet is composed of 15mm side panels, and the surface is made of wear-resistant black stonetex paint. Two handles embedded flush with the cabinet are installed on the bottom of the top of the speaker, which is convenient for installation and transportation during stage monitoring; rear wiring board 2 A NL-4 four-pin socket, (1+1-input, 2+2-connection). Rotatable LOGO is more suitable for the use of speakers at any angle. The black perforated iron mesh is covered with sound-permeable mesh cotton, which can protect the speaker unit from dust and water.

Physical Data

Connectors2 x Speakon NL4
Connection Way1±…LF, 2±…N/C
FinishBlack stonetex paint
Cabinet Size(W×H×D)580x400x340mm
Shipping Carton Size (W x H x D)790x491x465mm
Weight19kg net/21kg gross

Technical Specification

TypeSingle 12-inch stage monitor speaker
Power Handling (AES)400W RMS
Nominal Impedance
Average Sensitivity(1w/1m)97dB
Maximum SPL/1m123(Continuous) 129dB(Peak)
Frequency Response55Hz-18kHZ(±3dB) 60HZ-20KHZ(-10dB)
Nominal Directivity(-6dB)90°(H) x60°(V)
LF Driver2×12″ driver
HF Driver1×1.75″ compression driver
