The DPU-4.8 Digital Signal Processor is a powerful and versatile audio management solution
designed for professional sound reinforcement and installation applications. Equipped with 4 analog
inputs and 8 analog outputs, it operates at a high 96kHz/24-bit resolution for exceptional audio
clarity. The processor offers extensive tuning flexibility with 15-band PEQ on inputs and 10-band PEQ
on outputs, along with advanced filter options including Butterworth, Bessel, Linkwitz-Riley, and All Pass. With dynamic 3-band EQ, integrated FIR filtering (up to 512 taps per channel) and linear phase
processing, the DPU-4.8 ensures precise system alignment and superior sound performance. It also
features preset management with secure locking, and supports control via USB, TCP/IP, and RS232,
complemented by an intuitive Windows and Android-based control software for seamless operation.

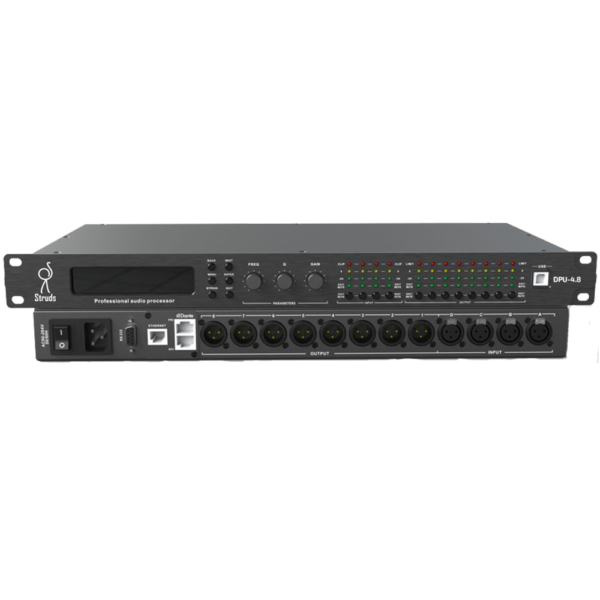

DPU-4.8 FIR Speaker Audio Processor
- 4 analog inputs and 8 analog outputs.
- 96k 24bit sampling rate.
- Input with 15 bands PEQ, output with 10 bands PEQ.
- Support HPF, LPF, Butterworth, Bessel, Linkwitz-Riley, LSLV, HSLV, ALL-PASS filters..
- Input with Dynamic 3 bands EQ.
- Input with 4×512Taps FIR filter and linear phase setting.
- Output with 8×512Taps FIR filter and linear phase setting.
- Support presets archiving and locking, hide setting parameters.
- Control connections: USB or TCP/IP. Configured with RS232 central control connection.
- Nice GUI windows7/8/10/11 software and Android app for network control.
TECHNICAL SPECIFICATION
| . DSP Chip | |
| Process: | ADI SHARC 21489 450MHz |
| System delay: | 1.8ms |
| AD/DA: | 24-bit 96KHz |
| 2. Analog Audio Inputs and Outputs | |
| Input: | 4 channels balanced. Dante 4 channels in option. |
| Input interface: | XLR |
| Input impedance: | 11KΩ |
| Max input level: | 16dBu/Line |
| Output: | 8 channels balanced. Line level |
| Output interface: | XLR |
| Output impedance: | 100Ω |
| 3. Audio Performance Specifications | |
| Frequency response: | 20Hz-40kHz(+-0.5dB)/Line |
| THD+N: | -93dB(@16dBu,1kHz,A-wt)/Line |
| SNR: | 109dB(@16dBu,1kHz,A-wt)/Line |
| 4. Connect Ports and Indicators | |
| USB: | Type A-B, free driver |
| RS232: | Serial port communication |
| TCP/IP interface: | RJ-45 |
| Indicator light: | CLIP，LEVEL，EDIT，MUTE |
| 5. Electrical and Physical | |
| Supply: | AC100V〜240V 50/60 Hz |
| Products Dimensions | 483mmx215mmx44.5mm |
| Packaged Dimensions | 537mmx343mmx77mm |
| Net Weight | 3.8kg |
| Packaged Weight | 4.2kg |
| Operating temperature: | -20℃〜80℃ |
