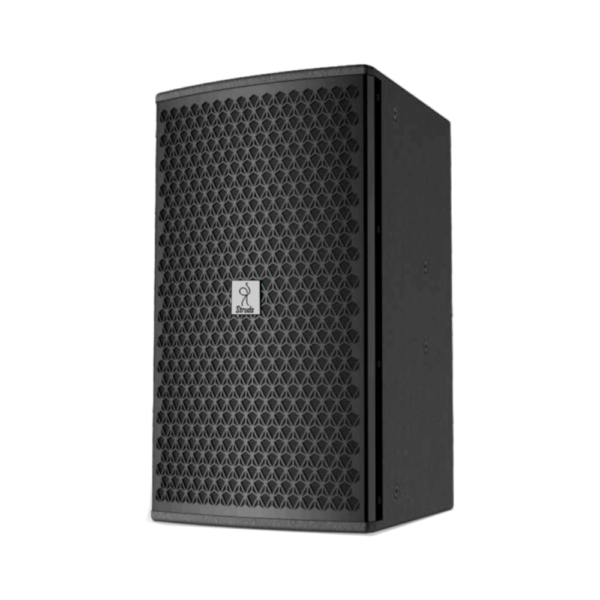

AS-10 Two-way full range speaker

  • 350W RMS (AES) power handling
  • 126dB continuous SPL output
  • 110°x70° low resonance horn
  • 55-19000Hz usable frequency range
  • New circuit design, adjustment, and calibration of professional electro-acoustic equipment

AS-10 is a two-way passive speaker with a high-precision 44-core compression driver, which can bring smooth ultra-high frequency extension performance and extremely clear, translucent high pitched sound.

The unique horn technology provides precise directivity, ensuring that a uniform and consistent tone can be heard in different areas of the speaker coverage. The well-designed crossover network makes the low-frequency dynamic and vigorous, which can meet the needs of professional sound reinforcement.

The cabinet is made of high-density plywood with black water-based paint and dark green flash silver piano paint for customers to choose from. The dark green flash silver piano paint adopts advanced spraying technology, which makes the surface resistant to breaking, bright, and fashionable. AS-10 is suitable for fixed installation in different venues.



Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon:+1,-1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)310x520x355mm
Shipping Carton Size (W xH x D)380x600x430mm
Weight15.1kg net/17.9kg gross

Technical Specification

TypeTwo-way full range speaker
Power Handling (AES)350W RMS
Program700W
Peak1400W
Nominal Impedance
Average Sensitivity(1w/1m)96dB
Maximum SPL/1m126dB continuous
Program129dB
Peak132dB
Frequency Response55Hz-19KHz(±3dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier600W
LF Driver1×10″ 65 core driver (imported voice coil)
HF Driver1×1.75″ fane driver
