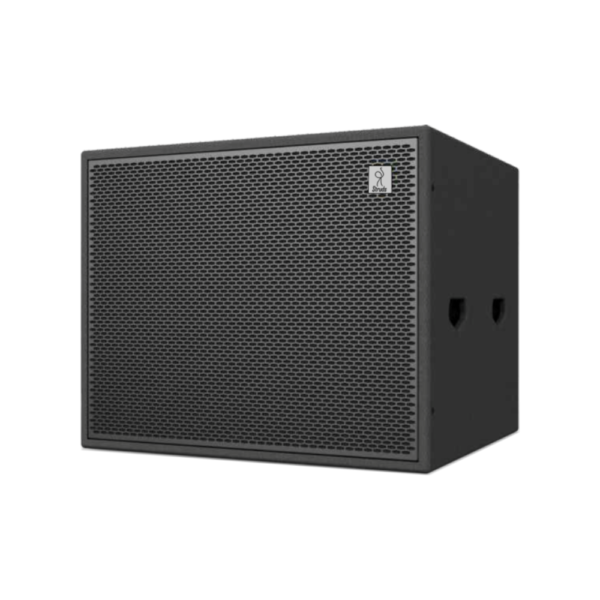

SS-18W Single 18-inch passive subwoofer

  • 600w Power handling
  • 125dB continuous SPL output
  • 38-250Hz usable frequency range
  • Porous multilayer plywood box
  • Black stonetex paint

SS-18W is an ultra-low speaker with good explosive power and flexibility. It can provide a frequency range of 38-250Hz, diving deep without losing power, and without turbidity. The built-in 100-core high-performance woofer has a powerful sound, high stability, and extremely low distortion. It is a rare ultra-low speaker. Because of its phase response, it is designed to be used with various full-range speakers. It combines perfectly with the TLX-210 line array system, which can expand the low-frequency response of the system.

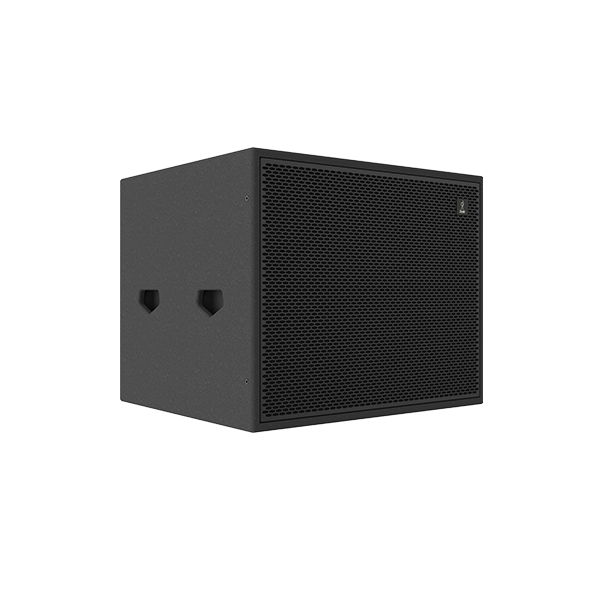

VS-118 has the characteristics of large sound pressure and high output, which can be used in many places of ultralow frequency system and has a wide range of applications; All types of small and medium-sized tour PA system or permanent fixed installation can be easily controlled.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)69x561x596mm
Shipping Carton Size (W x H x D)790x652x688mm

Technical Specification

TypeSingle 18-inch passive subwoofer
Power Handling (AES)600W RMS
Program1200W
Peak2400W
Nominal Impedance
Average Sensitivity(1w/1m)98dB
Maximum SPL/1m125dB continuous
Program128dB
Peak131dB
Frequency Response38Hz-250KHz(±3dB)
Nominal Directivity(-6dB)Omnidirectional
Recommended Amplifier800W/1000W
LF Driver1×18″ driver
HF Driver1×3″ compression driver
