The F-218W is a high-performance dual 18-inch subwoofer engineered to deliver powerful, deep,
and impactful bass for professional sound reinforcement applications. Available in 2200W and
2600W power configurations, it features premium 125 mm (5-inch) voice coils for exceptional
power handling, thermal stability, and long-term reliability. With a maximum 137 dB SPL, the F-
218W produces clean, punchy low frequencies with outstanding efficiency, making it an ideal
choice for concerts, live events, clubs, auditoriums, and large-scale installations where powerful
low-end performance is essential.

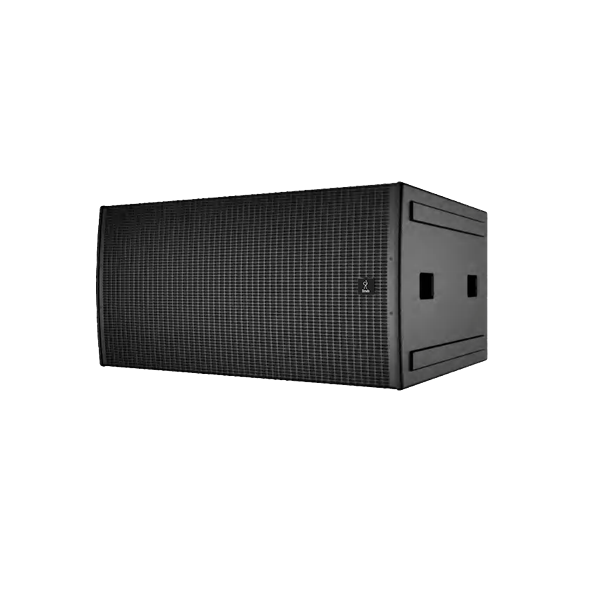

F-218W Dual 18-inch passive subwoofer
- 115mm Voice coil , high transient Low frequency woofer
- Bandpass style enclosure design.
- 250mm diameter large magnet for strong low frequency drive
- Safe and reliable speaker connection
PHYSICAL DATA
| Connectors | 2 x Speakon NL4 |
| Connection way | Speakon; +1, -1 (+2,-2 Loop) |
| Material | 18+24mm Birch Plywood |
| Finish | Matt black polyurea paint |
| Cabinet Size(W×H×D) | 1066x562x780mm |
| Shipping Carton Size (W x H x D) | 1190×678×896mm |
| Weight | 89kg net/91kg gross |
TECHNICAL SPECIFICATION
| Type | Dual 18-inch passive subwoofer |
| Power Handling (AES) | 2200W RMS |
| Program | 4400W |
| Peak | 8800W |
| Nominal Impedance | 4Ω |
| Average Sensitivity(1w/1m) | 99dB |
| Maximum SPL/1m | 132dB continuous |
| Program | 135dB |
| Peak | 138dB |
| Frequency Response | 38Hz-250Hz(±3dB) |
| Nominal Directivity(-6dB) | Omnidirectional |
| Recommended Amplifier | 1600W 8Ω |
| LF Driver | 2×18″ driver |
