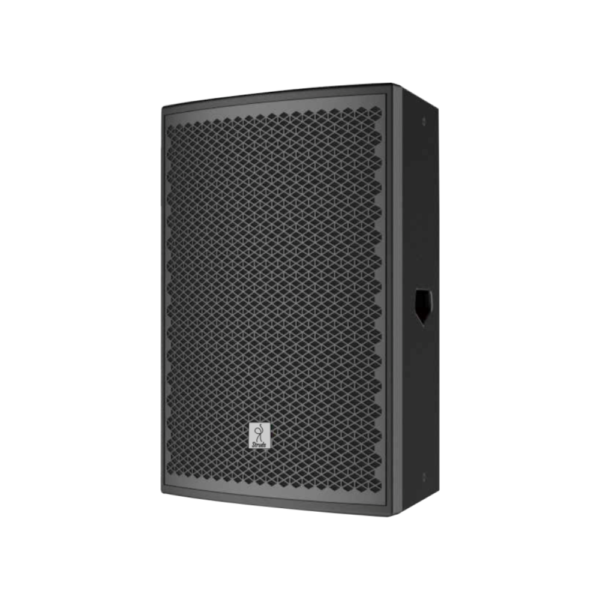

DS-15 Two-way full range speaker

  • 500W RMS(AES) power handling
  • 128dB continuous SPL output
  • 100°x70° low resonance fiberglass horn
  • Matt black polyurea paint

The speaker driver components used in DS-15 have been carefully selected to ensure their sound reproduction. It is composed of a high-quality efficient 75-core woofer and a 75-core neodymium compression tweeter driver. The accurately calculated cabinet volume can be combined with the driver to make the low frequency more full, flexible, strong energy, clear and transparent high frequency. it ensures high and low unit connection and excessive consistency based on a well-designed crossover network. Good quality sound and strong penetrating power, rich layering, good low-frequency dive, and wide sound range. DS-15 is suitable for bars, KTVs, and nightclubs as the main sound reinforcement or side field fill.

Physical Data

Connectors2 x Speakon NL4
Connection waySpeakon; +1, -1
MaterialPlywood
FinishMatt black polyurea paint
Cabinet Size(W×H×D)470x691x441mm
Shipping Carton Size (W xH x D)546x780x523mm

Technical Specification

TypeTwo-way full-range speaker
Power Handling (AES)500W RMS
Program1000W
Peak2000W
Nominal Impedance
Average Sensitivity(1w/1m)102dB
Maximum SPL/1m128dB continuous
Program131dB
Peak134dB
Frequency Response52Hz-20KHz(±3dB)
Nominal Directivity(-6dB)100°(H) x70°(V) constant directivity
Recommended Amplifier800W
LF Driver1×15″ driver
HF Driver1×3″ neodymium compression driver
