DS-12 is a two-way passive speaker, the high power and good performance woofer adopts an efficient 75-core driver, and the high sensitivity and low distortion treble unit adopts a 44-core compression driver. Through a good directivity angle, a wide range of sound reinforcements can be obtained. it ensures high and low unit connection and excessive consistency based on a well-designed crossover network. Good quality sound and strong penetrating power, rich layering, good low-frequency dive, and wide sound range. DS-12 is suitable for bars, KTVs, and nightclubs as main sound reinforcement or side field fill.Browse our partner-sponsored Glasses, with a variety of options to suit every taste and budget, available to buy online

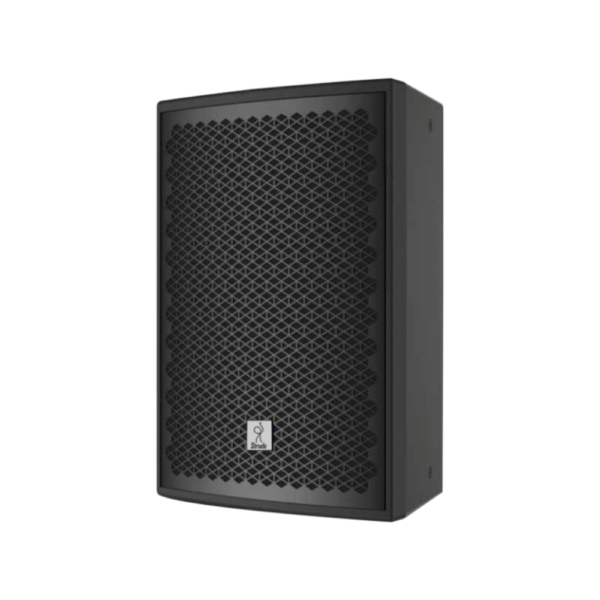

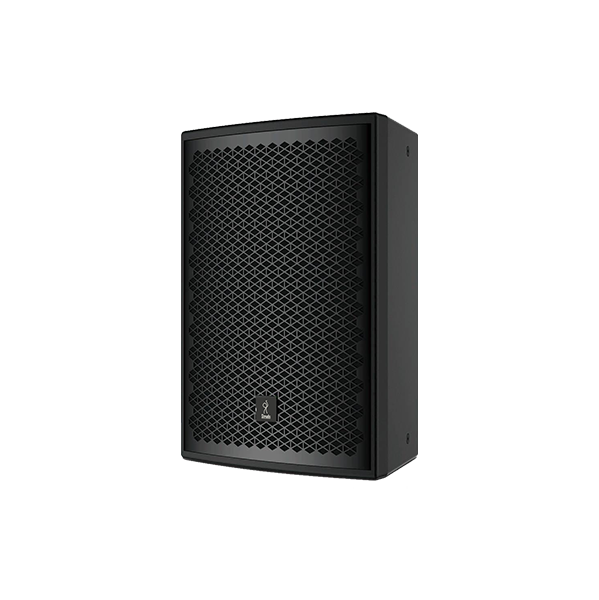

DS-12 Two-way full range speaker
- 420W RMS (AES) power handling
- 126dB continuous SPL output
- New circuit design, adjustment and calibration of
- professional electroacoustic equipment.
- 100°x70° low resonance glass fiber horn
- Matt black polyurea paint
Physical Data
Connectors | 2 x Speakon NL4 |
Connection way | Speakon; +1, -1 |
Material | Plywood |
Finish | Matt black polyurea paint |
Cabinet Size(W×H×D) | 388x573x356mm |
Shipping Carton Size (W x H x D) | 491x663x465mm |
Weight | 22.3kg net/25kg gross |
Technical Specification
Type | Two-way full range speaker |
Power Handling (AES) | 420W RMS |
Program | 840W |
Peak | 1680W |
Nominal Impedance | 8Ω |
Average Sensitivity(1w/1m) | 97dB |
Maximum SPL/1m | 126dB continuous |
Program | 129dB |
Peak | 131dB |
Frequency Response | 55Hz-19KHz (±3) |
Nominal Directivity(-6dB) | 100°(H) x70°(V) constant directivity |
Recommended Amplifier | 600W/800W |
LF Driver | 1×12″ driver |
HF Driver | 1×1.75″ compression driver |
