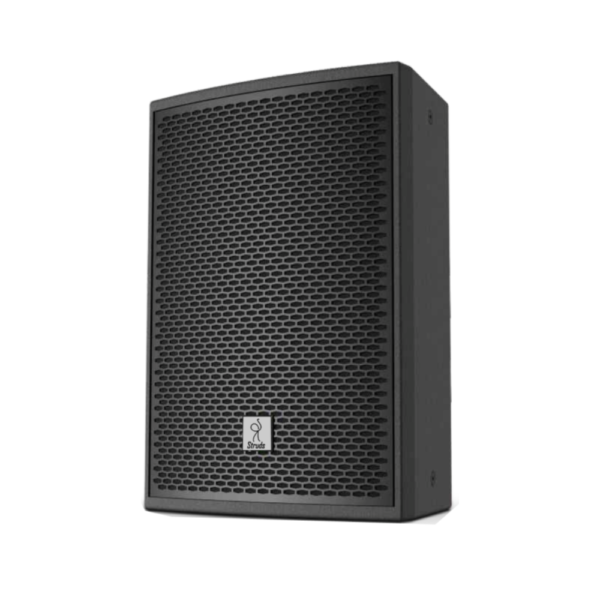

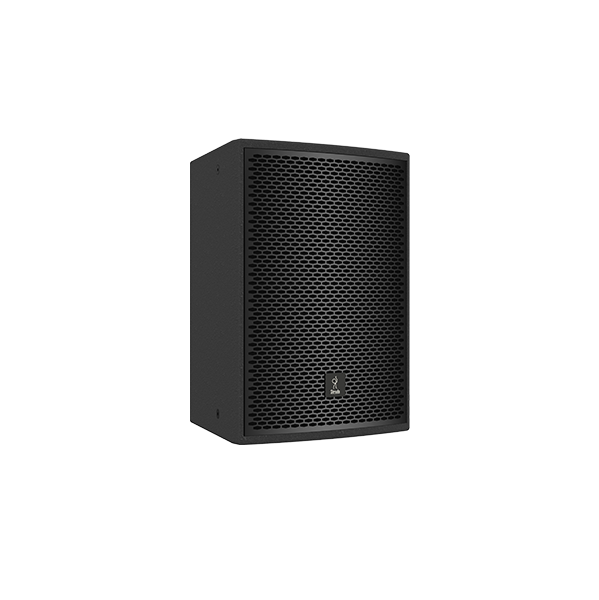

SS-10 Two-way full range speaker

  • 300W RMS power LF driver
  • Maximum SPL can be 125Db (Preset program
  • 55-18500Hz usable frequency range
  • 80°x 60°low resonance horn
  • Black  stonetex  paint



SS-10 is a powerful two-way passive speaker designed and developed for KTV. The speaker is characterized by outstanding vocal singing voice effects, singers at any level can easily play in the experience of this speaker, and the sound performance also has high-quality sound effects.

Combining the cabinet melting volume, the adjustment of the phase guide tube, and the sound-absorbing cotton, this speaker also has a good performance in low-frequency performance. It provides a frequency range of 55Hz-18.5kHz. This full-range speaker is specially designed for optimizing the sound reinforcement system. It has exquisite and realistic reduction ability, and truly reproduces the sound interpretation of various occasions.

There will be no burr in the middle and high frequency, avoiding ear fatigue. Passionate interpretation, dynamic low-frequency interpretation, convenient and quick hoisting system. It is suitable for conference venues, stage performances, nightclub side field sound fill systems, and various fixed installation places.

Physical Data

Connectors2 x Speakon NL4
Connection WaySpeakon +1, -1
MaterialPlywood
FinishBlack stonetex paint
Cabinet Size(W×H×D)346x495x316mm
Shipping Carton Size (W x H x D)390x575x430mm
Weight16.2kg net/18.6kg gross

Technical Specification

TypeTwo-way full-range speaker
Power Handling (AES)300W RMS
Program600W
Peak1200W
Nominal Impedance
Average Sensitivity(1w/1m)96dB
Maximum SPL/1m125dB continuous
Program128dB
Peak131dB
Frequency Response55Hz-18.5KHz (±3dB)
Nominal Directivity(-6dB)80°(H) x60°(V) constant directivity
Recommended Amplifier600W
LF Driver1×10″ 65 core driver
HF Driver1×1.75″ compression driver
