S-18W is an ultra-low speaker with good explosive power and flexibility, diving deep without losing
power, and without turbidity. The built-in 100-core high-performance woofer has a powerful sound,
high stability, and extremely low distortion. It is a rare ultra-low speaker.
Because of its phase response, it is designed to be used with various full-range speakers, which can
expand the low-frequency response of the system.
It has the characteristics of large sound pressure and high output, which can be used in many
places of ultra-low frequency systems and has a wide range of applications; All types of small and
medium-sized tour PA systems or permanent fixed installations can be easily controlled.

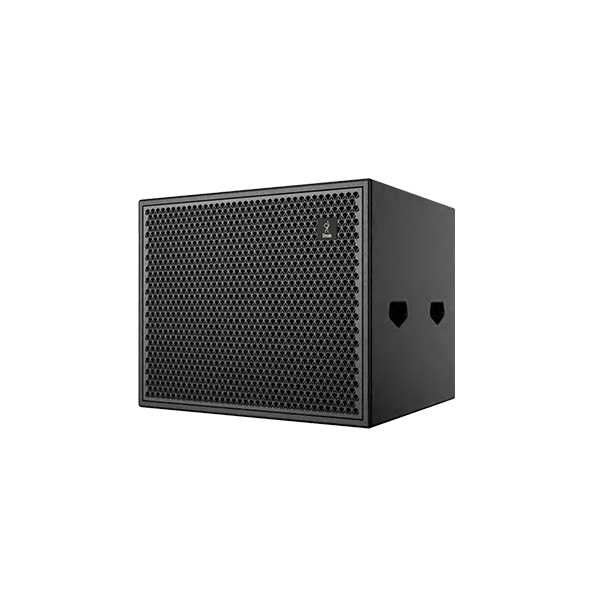

S-18W Passive Single 18″ Subwoofer
- 100mm high-transient woofer
- Cabinet design combined with phase reversal
- Safe and reliable speaker interface
PHYSICAL DATA
| Connectors | 2 x Speakon NL4 |
| Connection Way | Speakon +1, -1 (+2,-2 Loop) |
| Material | 18mm Birch Plywood |
| Finish | Black stonetex paint |
| Cabinet Size(W×H×D) | 561×690×596mm |
| Shipping Carton Size (W x H x D) | 652×790×688mm |
| Weight (Net/Gross) | 39.6kg/43kg |
TECHNICAL SPECIFICATION
| Type | Single 18-inch passive subwoofer |
| Power Handling (AES) | 800W RMS |
| Program | 1600W |
| Peak | 3200W |
| Nominal Impedance | 8Ω |
| Average Sensitivity(1w/1m) | 98dB |
| Maximum SPL/1m | 125dB continuous |
| Program | 128dB |
| Peak | 131dB |
| Frequency Response | 38Hz-250KHz(±3dB) |
| Nominal Directivity(-6dB) | Omnidirectional |
| Recommended Amplifier | 1000W/1200W |
| LF Driver | 1×18″ driver |
| Grill | Powder quoted Still Grill |
