The CX8 is a high-performance 8-inch coaxial loudspeaker engineered to deliver powerful, fullrange audio for demanding indoor and outdoor installation applications. With 150W power
handling and a maximum 125 dB SPL, it provides exceptional clarity, high output, and excellent
speech intelligibility with balanced music reproduction. Its IP56-rated weather-resistant enclosure
ensures reliable operation in challenging outdoor environments, while the included pan-and-tilt
mounting bracket allows flexible aiming for precise sound coverage. Ideal for stadiums, sports
facilities, theme parks, hospitality venues, houses of worship, commercial spaces, and public
address systems, the CX8 combines durability with outstanding acoustic performance.

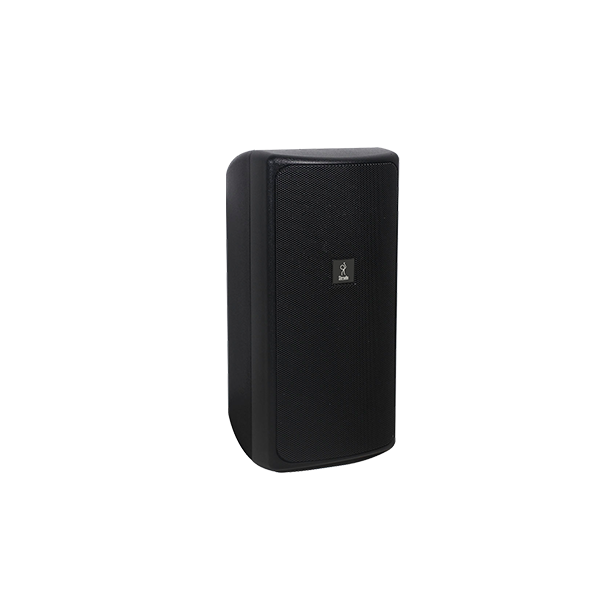

CX-8 Passive Coaxial Outdoor Speaker
- Weather Proof: IPX55-56
- PA Transformer: TBD
- Multi Device Connections
PHYSICAL DATA
| Connectors | 2 pin Phoenix Connector |
| Connection way | Black & Red wire |
| Material | ABS |
| Finish | ABS Body Black or White |
| Cabinet Size(W×H×D) | 230×470×257mm |
| Shipping Carton Size (W x H x D) | Packed in pair |
| Weight | 7kg net/8kg gross |
TECHNICAL SPECIFICATION
| Type | Two-way full range speaker |
| Power Handling (AES) | 150W RMS |
| Program | 300W |
| Peak | 600W |
| Nominal Impedance | 8Ω |
| Average Sensitivity(1w/1m) | 96dB |
| Maximum SPL/1m | 119dB continuous |
| Program | 122dB |
| Peak | 125dB |
| Frequency Response | 90Hz-16KHz (±3) |
| Nominal Directivity(-6dB) | 110°(H) x110°(V) constant directivity |
| Recommended Amplifier | 250W/300W |
| LF Driver | 1×8″ driver |
| HF Driver | 1×1.25″ compression driver |
